Updated LED Information

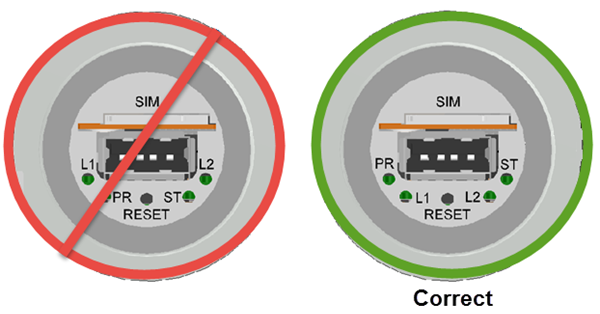

Correction: Some MTCDTIP-xxx-26x devices were shipped with LEDs labels reversed. The correct LED labels are shown on the right below.


LED Descriptions

Label LED Description
PR Power Green when powered up
ST Status Red with blinking green. This is user programmable.
L1 L1 These are user-defined. Can be red or green.
L2 L2
