mDot

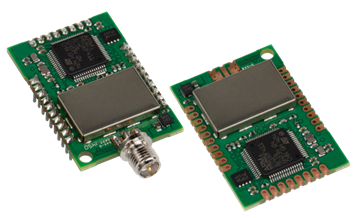

mDot_NET

The mDot™ is a LoRaWAN® ready, Low-Power Wide Area Network (LPWAN) module for 868 MHz SRD and 915 MHz ISM bands. It is capable of 2-way single-duplex communication across distances of up to 5 miles/8 km line of sight, deep into buildings, or within noisy environments*. It supports ARM® Cortex®-M4 processor, complete with mbed libraries for intelligence and remote device monitoring. By using LoRa™ technology, mDot simplifies deployment and local connectivity for Internet of Things (IoT) applications in North America and Europe. The mDot is FCC/IC/CE certified.

*Distance depends on conditions, configuration, antennas, desired throughput, and usage frequency. In dense urban environments, a typical range is 1-2 miles. In Europe, with a larger spreading factor, the range may exceed 5 miles.

Using mDots

mDots ship from the factory pre-loaded with custom firmware, which provides a serial AT command interface for configuring and using the mDot. During development, use the firmware to test LoRa transmissions and, during production, use these AT commands when controlling an mDot with a separate host processor.

  • For the latest information regarding mDot, refer to the developer guide on mulitech.com: mDot Developer Guide
  • To download the latest version and flash in pre-compiled firmware, go to [p2p slug=”mdot-firmware-upgrade”].
  • For more information, see [p2p slug=”at-command-firmware-user-guide”].

Additionally, our LoRa API allows you use mbed to develop custom applications. With the LoRa API, you don’t need a separate host processor.

  • The MultiTech mDot mbed platform page has links to the LoRa API (libmDot).
  • For a sample program showing how to configure and use the LoRa API, go to mDot LoRa Connect Example
  • To flash custom firmware into the mDot, see the relevant steps in [p2p slug=”mdot-firmware-upgrade”].

Guides

Downloads

Related

  • For information on using the Conduit platform, go to [p2p slug=”multiconnect-conduit-platform”].
  • For LoRa information, go to [p2p slug=”lora”]
  • For a datasheet and information on the processor, go to STmicro STM32F411RE
