Hardware Specifications R0.0

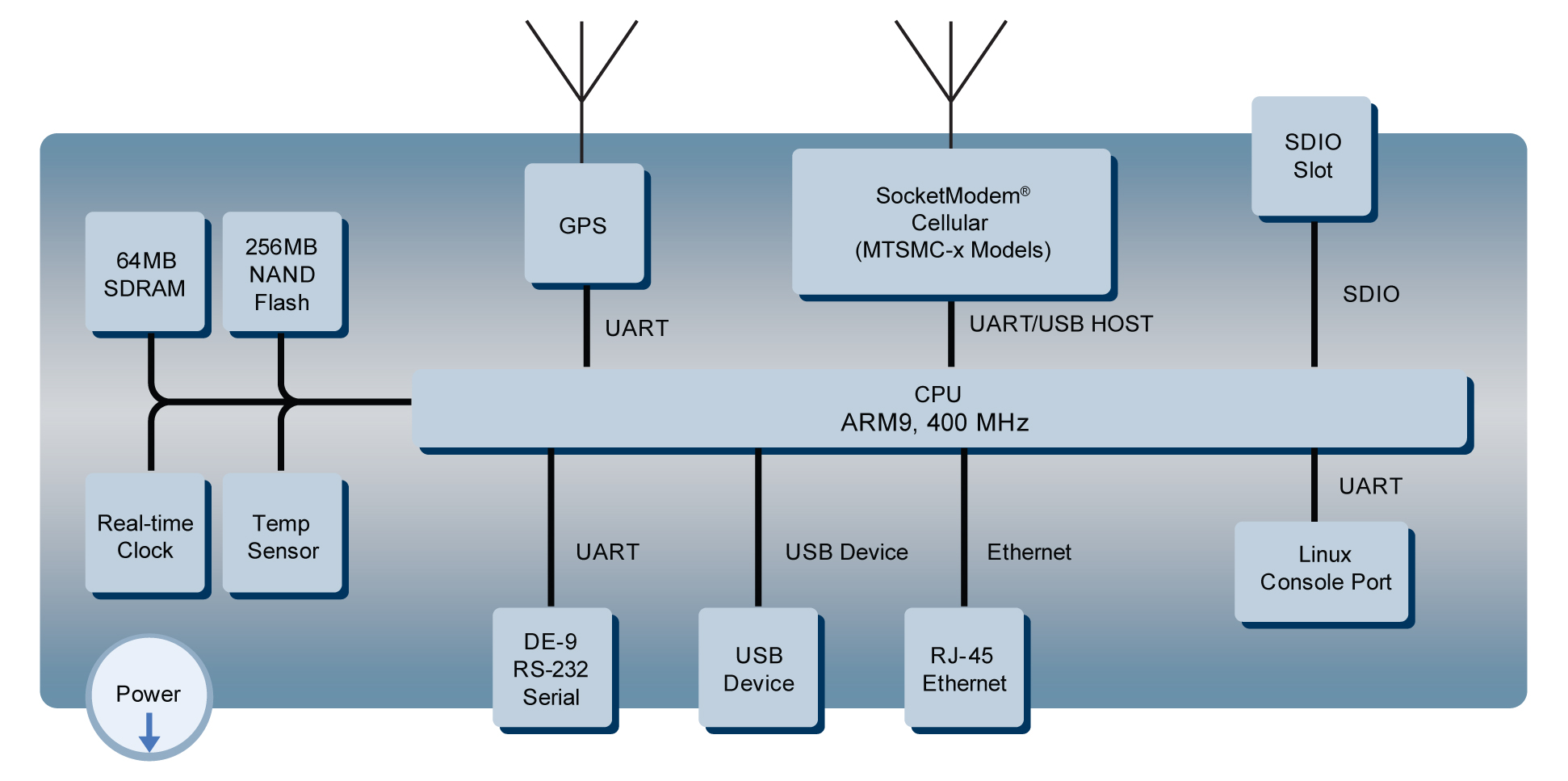

MultiConnect OCG-D (MTCDP) Block Diagram

Hardware Specification
  • ARM9 CPU 400MHz
  • 256MB NAND flash
  • 64MB SDRAM
External Interfaces and Connectors
  • Power input 9VDC to 32VDC
  • DE-9 RS232 connector
  • USB 2.0 Full Speed (12 Mbps) device connector
  • RJ45 Ethernet 10/100 auto sense connector
  • GPS Antenna SMA female connector
  • GSM/CDMA Antenna SMA female connector
  • Slot for SD memory card
  • LEDs for Power, Cellular Link Status, Ethernet, Speed
  • 5 programmable LEDs for application specific use
  • Reset Button access
Internal Peripherals
  • RTC (real time clock)
  • Full GPS receiver
  • Multi-Tech SocketModem Cellular (one of the following)
    • MTCDP-G2: 2G GPRS cellular modem
    • MTCDP-E1: 2.5G EDGE cellular modem
    • MTCDP-EV2: 3G EVDO cellular modem
    • MTCDP-H4: 3G HSPA cellular modem
  • 3-pin serial debug console port
  • Temperature sensor
Cabling
  • Ethernet cable
  • Serial cable
  • USB cable
  • 3-pin serial debug cable
  • Combo GSM/GPS antenna
Power Supply
  • 100-240V 9V-1.7A changeable blade power supply; three removable blades (US, Euro and UK)
